This VintCo KR2015 connecting rod kit is a newly manufactured replacement assembly for 1971-1981 CZ 380cc models from Ceská zbrojovka (CZ a.s.). It is intended as an alternative to replacing the complete crankshaft and includes the connecting rod, crank pin, big end bearing, wrist pin bearing and two thrust washers. The kit is produced using modern materials and manufacturing methods for OEM-style fit and performance.

Features

• Replacement connecting rod kit for vintage CZ 380cc models
• Suitable for dirt bike applications
• Alternative to replacing the complete crankshaft
• Manufactured using modern materials and production methods
• Intended to provide OEM-style fit and performance

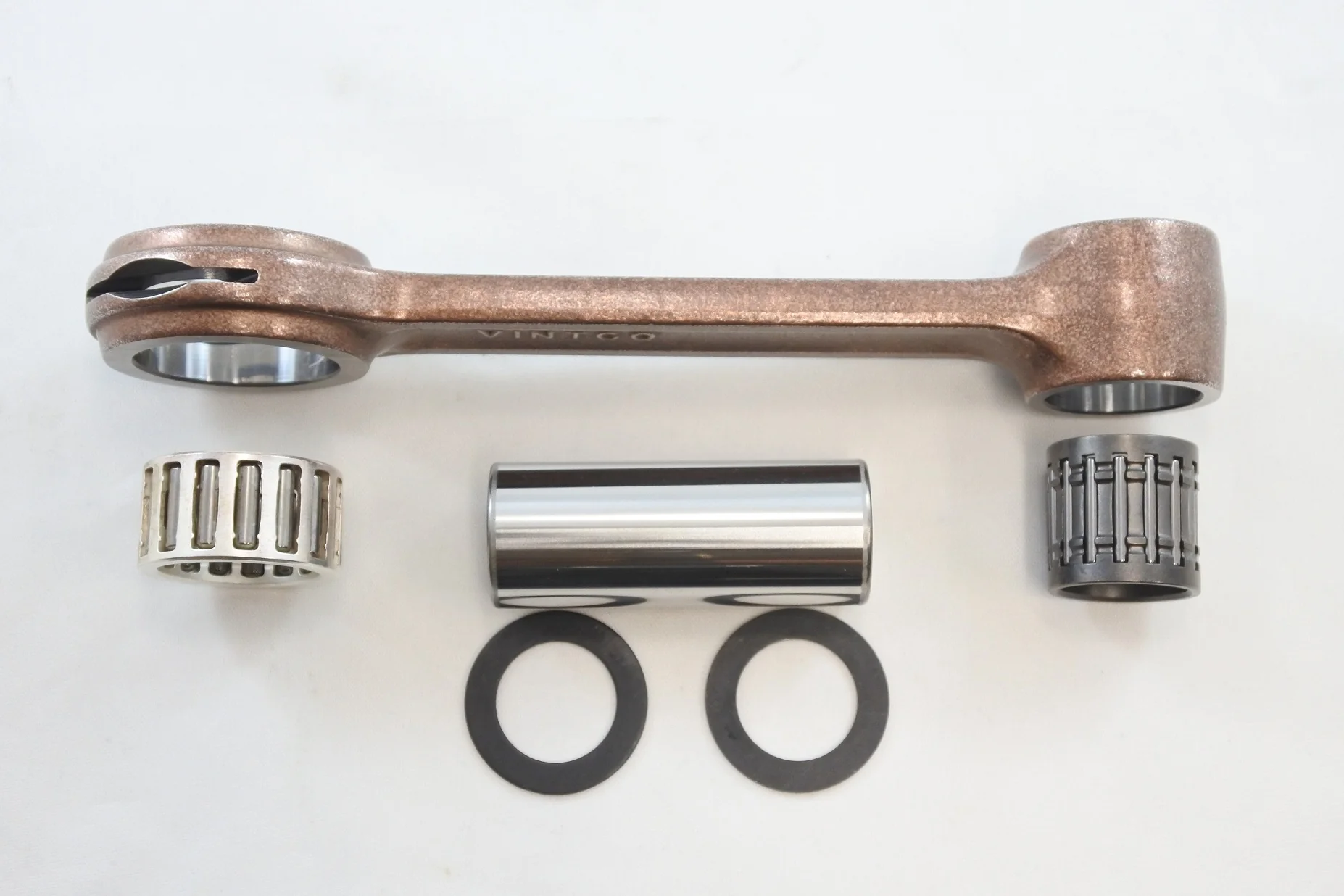

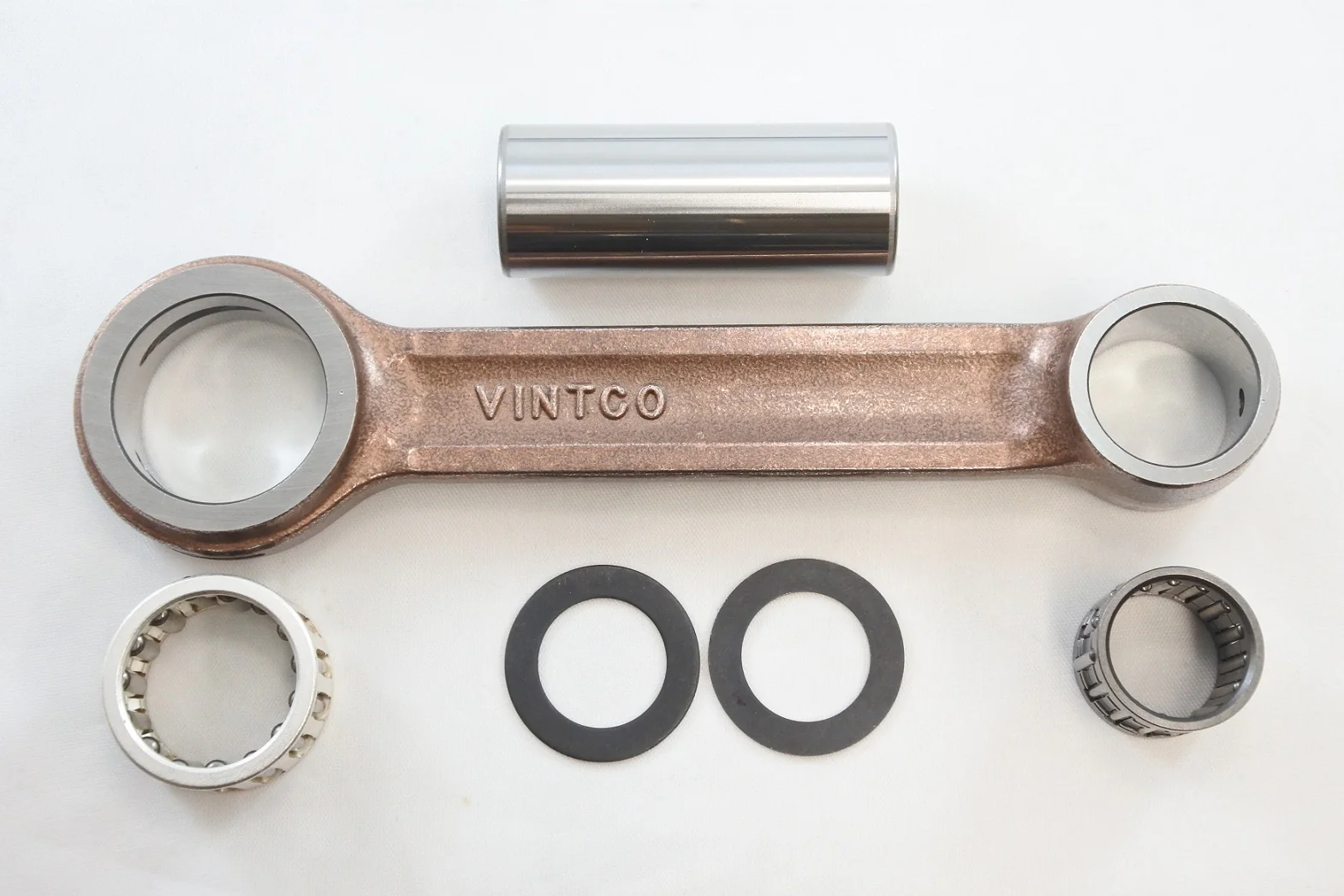

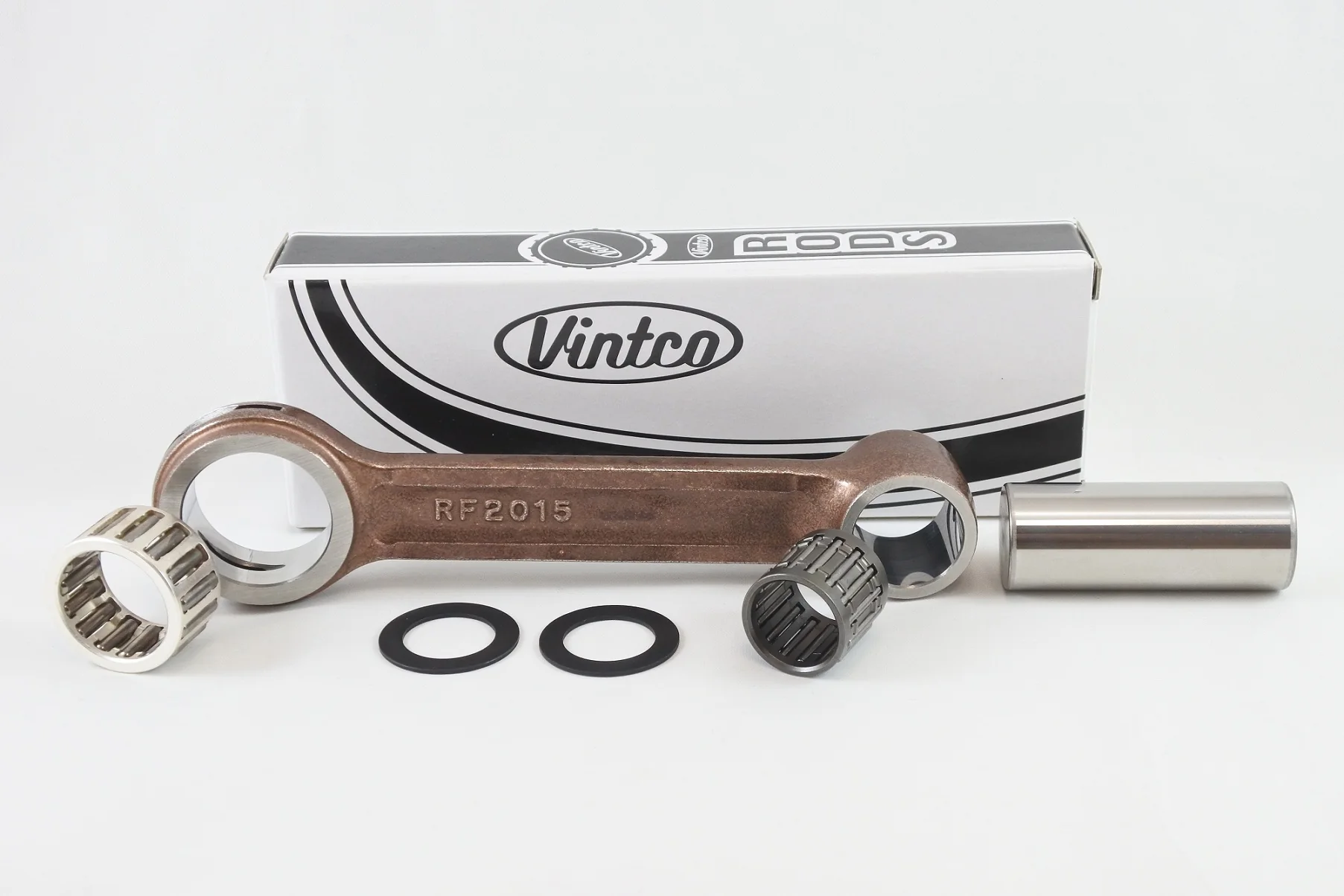

• Includes connecting rod, crank pin, big end bearing, wrist pin bearing and two thrust washers

Specifications

• VintCo Part Number: KR2015
• Compatible manufacturer: Ceská zbrojovka (CZ a.s.)
• Rod material: Heavy Duty Forged Steel
• Connecting rods included: 1
• Crank pins included: 1

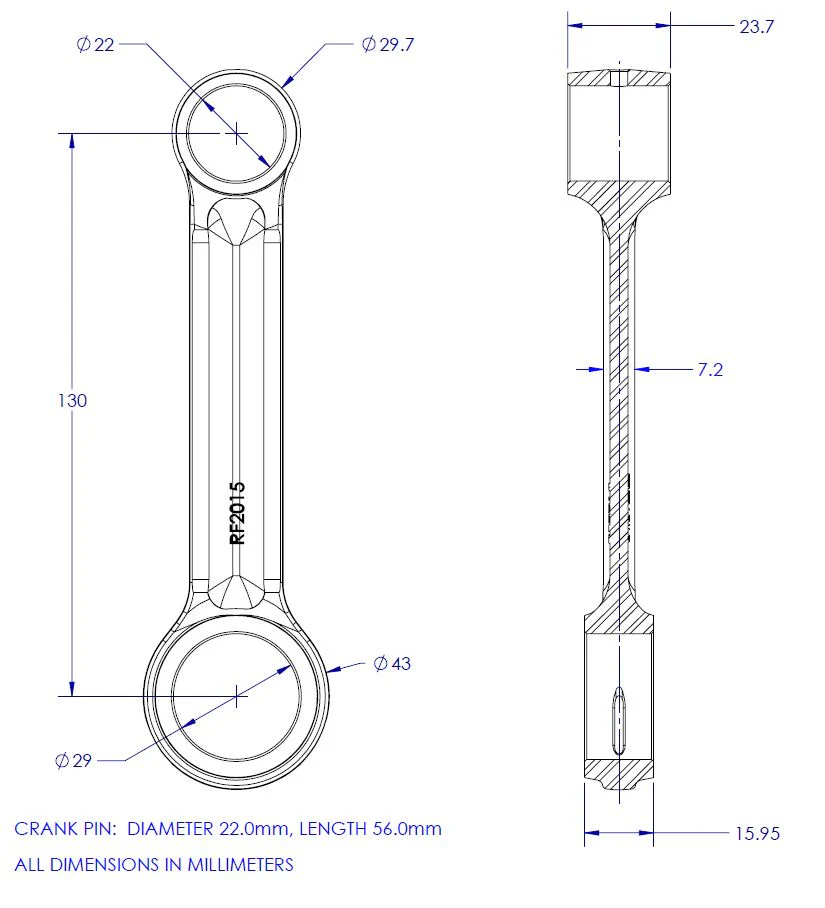

• Crank pin size: 22 x 56 mm
• Big end bearings included: 1
• Big end bearing size: 22 x 29 x 15.8 mm
• Wrist pin bearings included: 1
• Wrist pin bearing size: 18 x 22 x 23.5 mm
• Thrust washers included: 2
• Thrust washer size: 18 x 28 x 1 mm

Vehicle Fitments

• 1971 CZ 380cc
• 1972 CZ 380cc
• 1973 CZ 380cc
• 1974 CZ 380cc
• 1975 CZ 380cc
• 1976 CZ 380cc
• 1977 CZ 380cc
• 1978 CZ 380cc
• 1979 CZ 380cc
• 1980 CZ 380cc
• 1981 CZ 380cc
