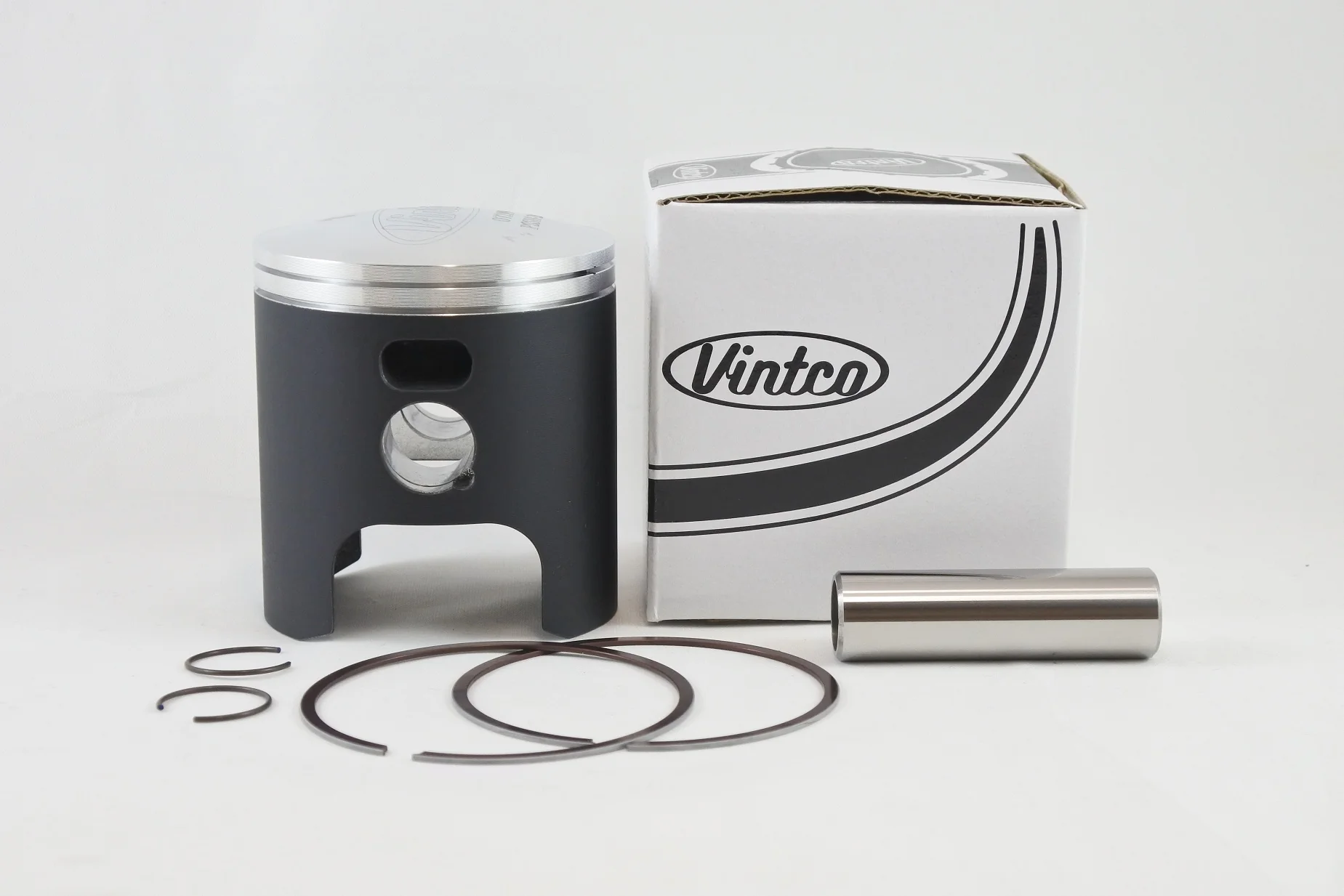

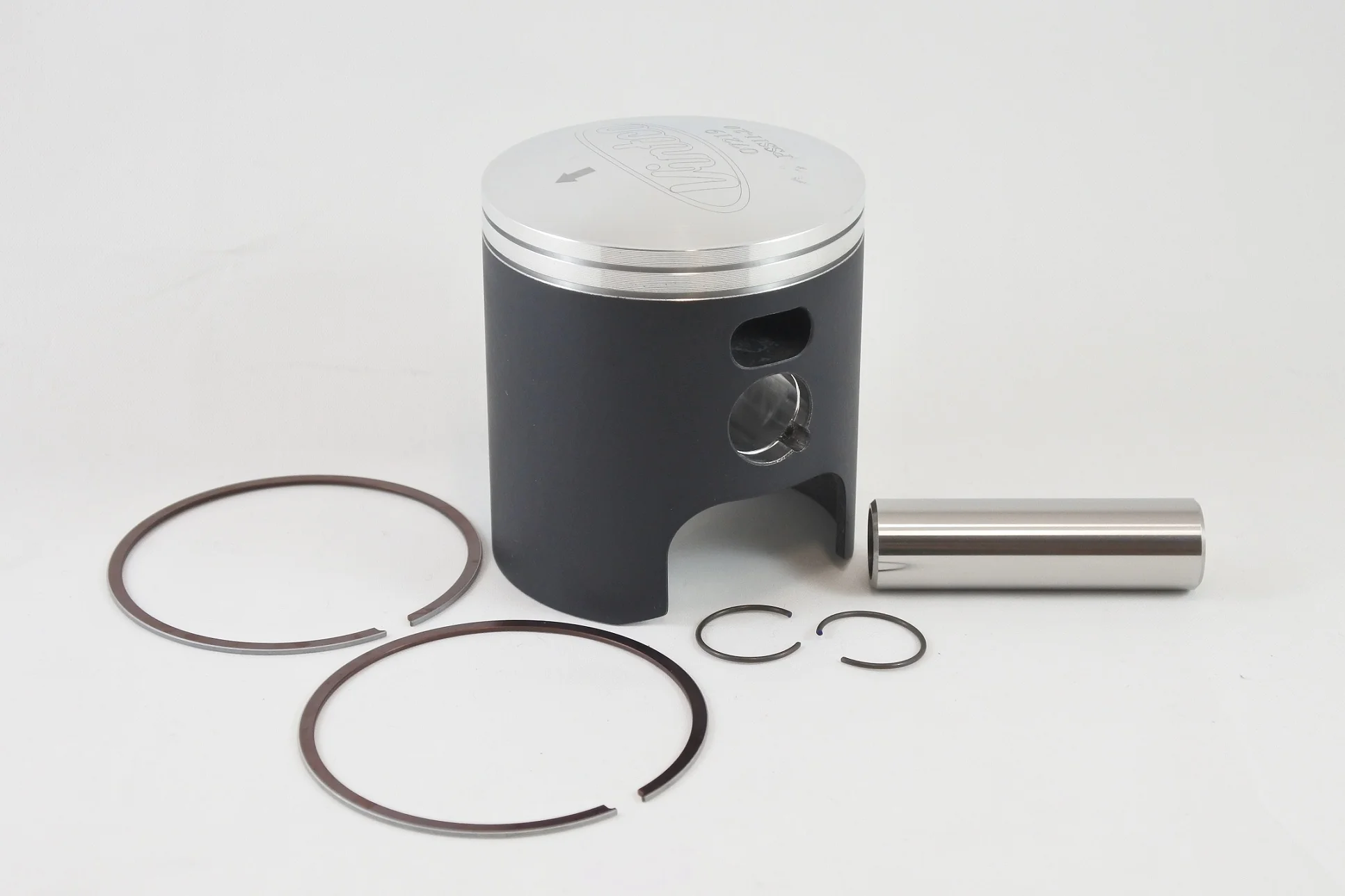

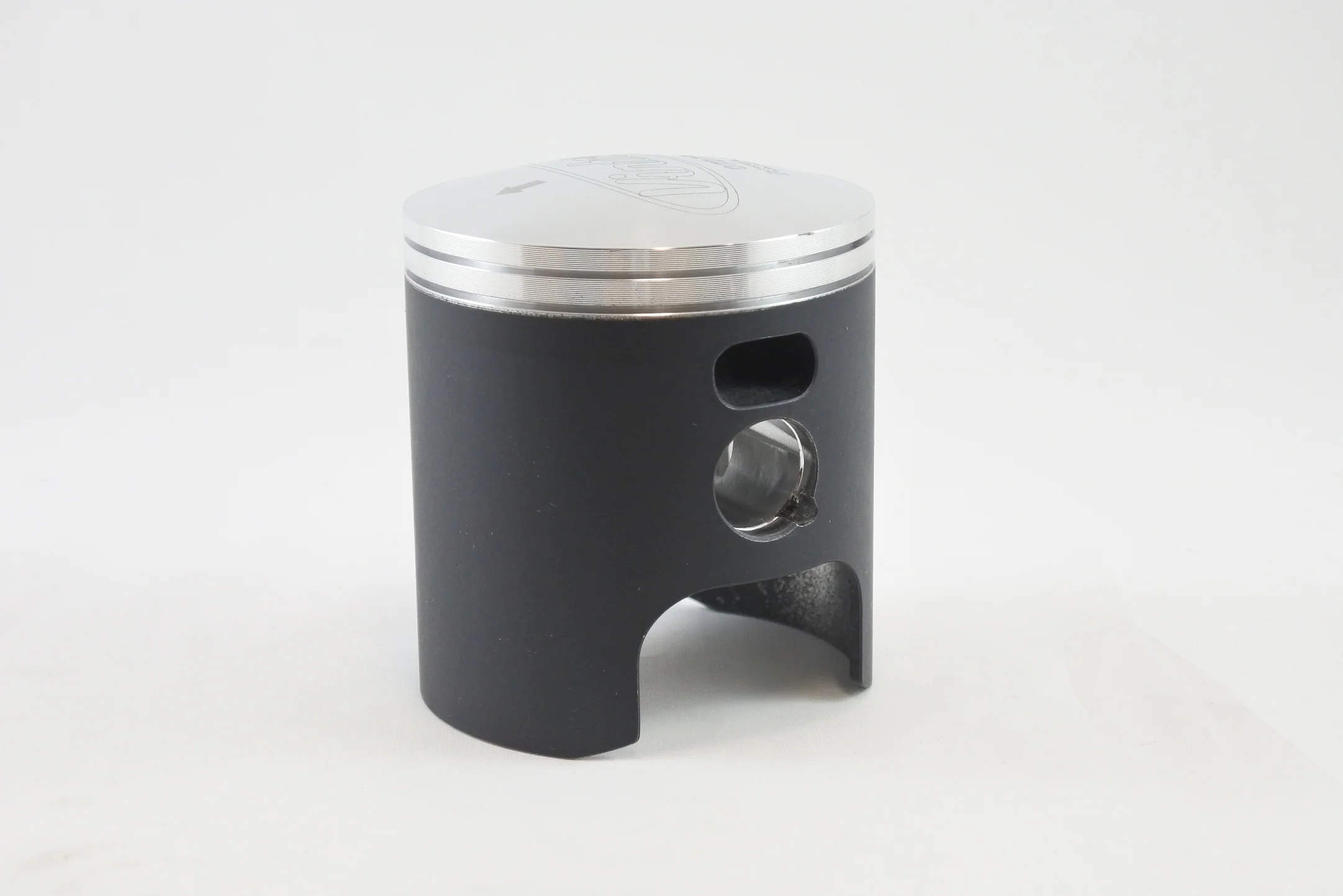

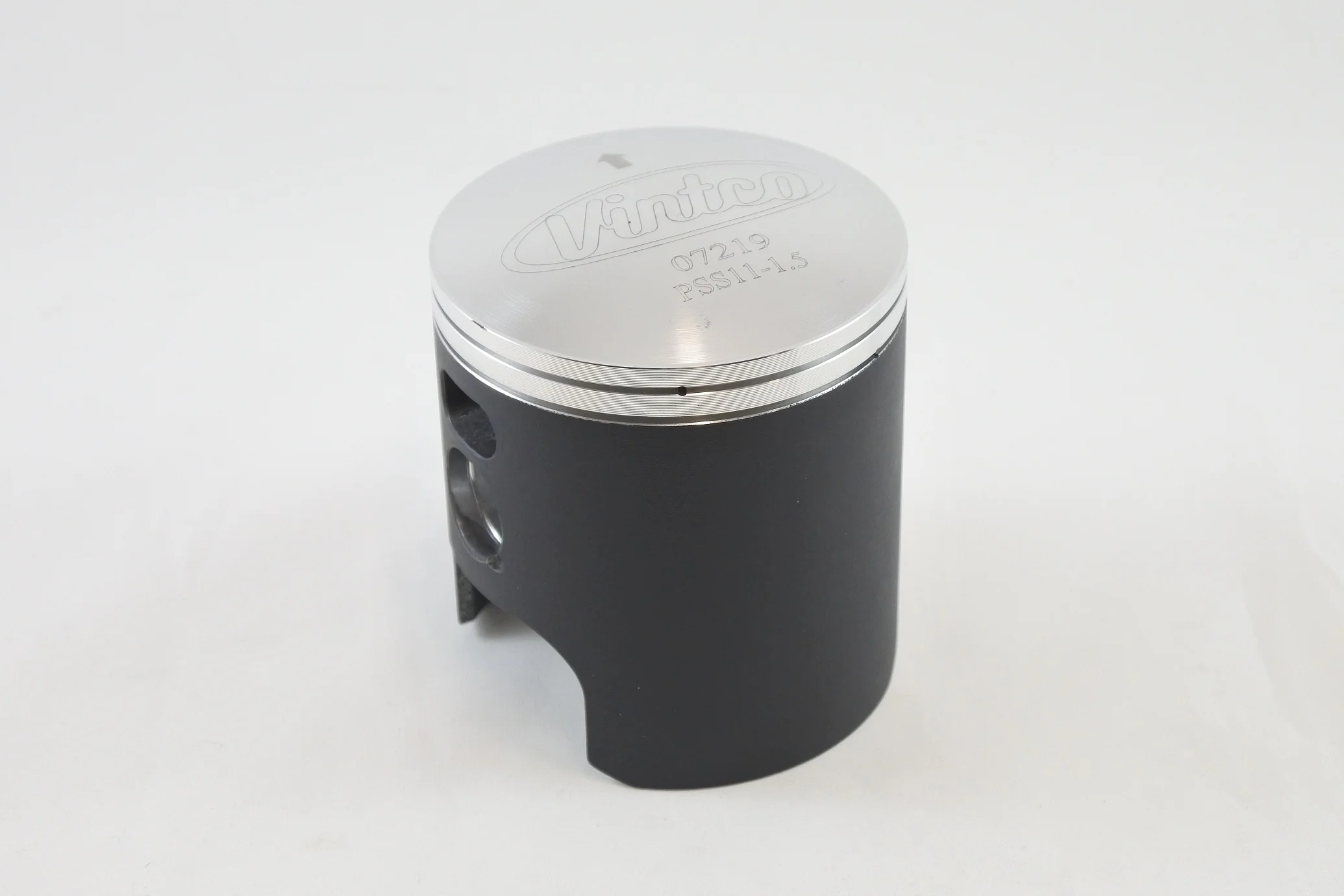

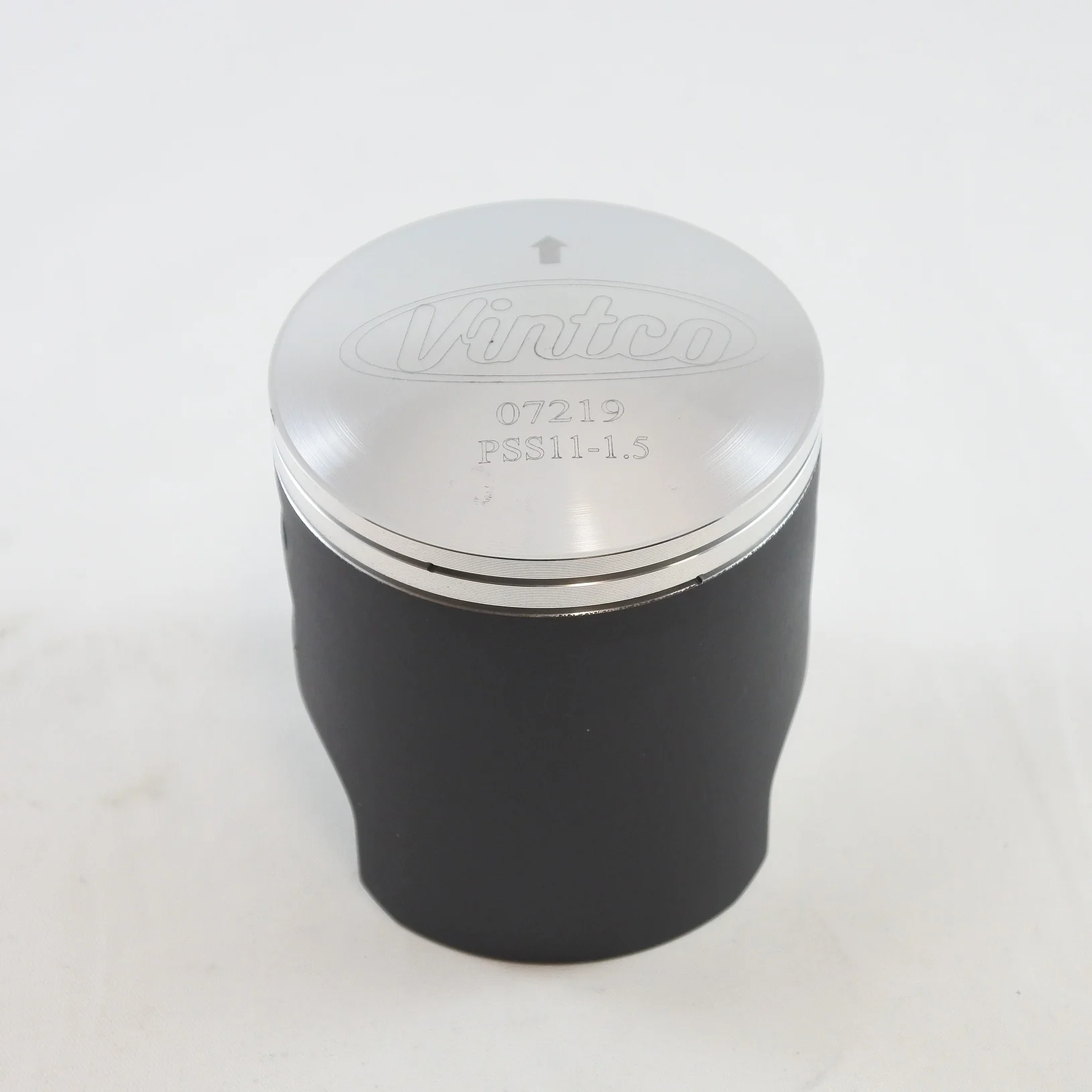

VintCo piston kit PSS11-1.5 for Suzuki DS185 (1978-80), TC185 (1974-77) and TS185 (1971-81) vintage 2-stroke motorcycles. Supplied in 65.5 mm size at +1.5 mm oversize, the kit includes the piston, rings, pin and clips. It is produced with modern materials and manufacturing methods to support OEM-type fit and performance, with a forged piston made in Germany and finished with an MoS2 coating for running-in. A wrist pin bearing is available separately.

Features

• Replacement piston kit for vintage 2-stroke motorcycles
• Includes piston, rings, pin and clips
• Wrist pin bearing available separately
• Designed to support OEM-type fit and performance

Specifications

• VintCo Part Number: PSS11-1.5
• Piston size: 65.5 mm
• Oversize: +1.5 mm
• Piston measurement: 65.43 mm
• Clearance: 0.07 mm
• Construction: Forged piston
• Coating: MoS2
• Country of manufacture: Germany

Vehicle Fitments

• 1971 Suzuki TS185
• 1972 Suzuki TS185
• 1973 Suzuki TS185
• 1974 Suzuki TS185
• 1974 Suzuki TC185
• 1975 Suzuki TS185
• 1975 Suzuki TC185
• 1976 Suzuki TS185
• 1976 Suzuki TC185
• 1977 Suzuki TS185
• 1977 Suzuki TC185
• 1978 Suzuki DS185
• 1978 Suzuki TS185
• 1979 Suzuki DS185
• 1979 Suzuki TS185
• 1980 Suzuki DS185
• 1980 Suzuki TS185
• 1981 Suzuki TS185
