Front Fork Off Road Spring System -WP 48mm AER KTM 2021

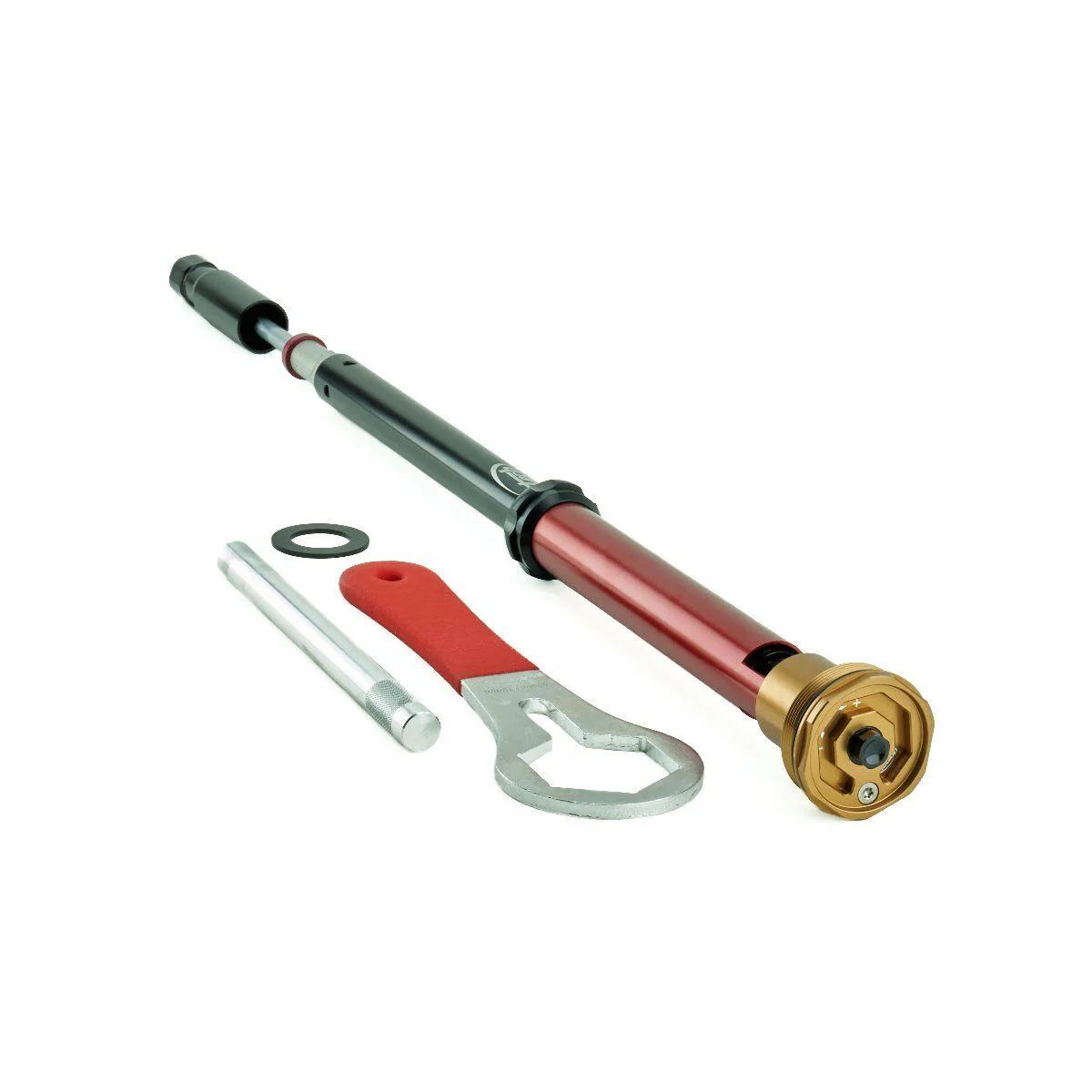

The K-Tech Off Road Spring System has been designed to replace the air system in the latest off road motorcycles, this simple design allows you to remove the original air spring system and replace it with a more conventional spring system. This direct replacement spring system requires no machining to install and also features external spring preload adjustment. The system also comes with a hydraulic bottoming device which protects the rider on hard landings.

• External spring preload adjustment


• Direct replacement (No machining required)


• Hydraulic bottoming device


• Hard chrome piston rod


• Aircraft grade aluminium parts


• Wide range of spring rates available

**Note: The ORSS system requires a 84-0022 series spring, which must be ordered separately.

Inner Diameter (mm) 20.00

Outer Diameter (mm) 10.00

Length (mm) 950.00

Oil / Air Gap (left) 350cc

Oil / Air Gap (right) 200cc

Gas Gas

• EX 250    2022-2023


• EX 250F    2021-2023


• EX 300    2022-2023


• EX 350F    2021-2023


• EX 450F    2021-2023


• MC 125    2021-2026


• MC 150    2025


• MC 250    2021-2026


• MC 250F    2021-2026


• MC 300    2025


• MC 350F    2021-2025


• MC 450F    2021-2026


• MC 450F Factory Edition    2023-2024


• MC 450F Prado Edition    2025



Husqvarna

• FC250 Rockstar    2022.5-2023


• FX350 2024


• FX450 2024


• TX300    2023-2024


• TX300 Heritage    2023

KTM

• 125SX    2021-2026


• 125XC    2021-2023


• 150SX    2021-2022


• 150SX    2025


• 250SX    2021-2026


• 250SX-F    2021-2026


• 250SX-F Factory Edition    2022.5-2023


• 250XC    2021-2023


• 250XC-F    2021-2023


• 300SX    2023-2026


• 300XC    2021-2023


• 350SX-F    2021-2026


• 350XC-F    2021-2023


• 450SX-F    2021-2026


• 450XC-F    2021-2023
