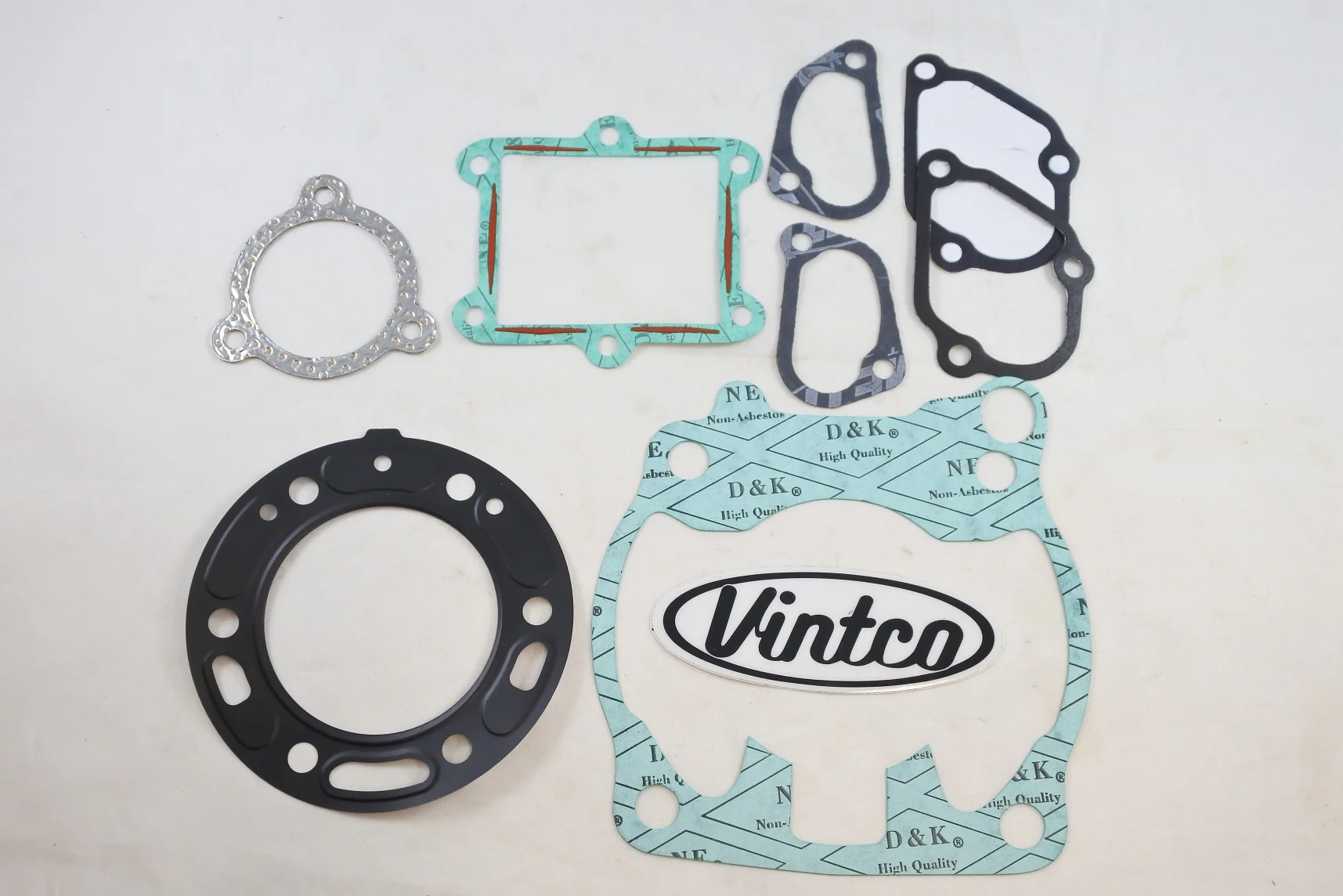

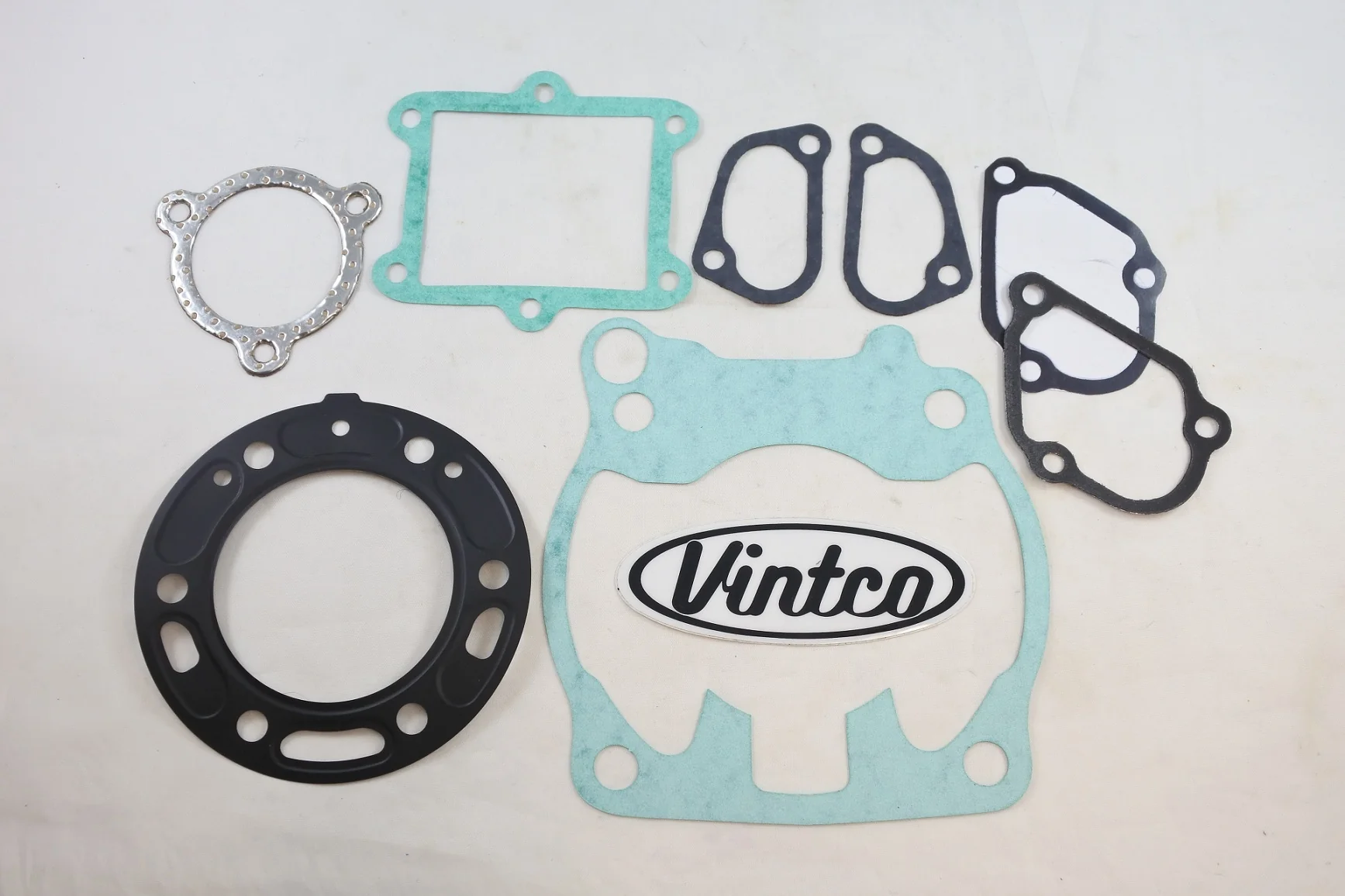

VintCo top end gasket kit KTE104 is designed for 1989-1991 Honda CR250 models with a 67 mm bore. It provides the gaskets required for top end rebuild work, including the head gasket, base gasket, two reed valve gaskets, exhaust pipe gaskets, side power valve gasket, and upper left and right power valve cover gaskets. The kit is produced using modern materials and manufacturing techniques for OEM-style fitment and performance.

Features

• Complete top end gasket kit for rebuild work
• Includes gaskets for the head, base, reed valve, exhaust pipe and power valve covers
• Intended to complete top end assembly
• Manufactured using modern materials and manufacturing techniques
• OEM-style fitment and performance

Specifications

• VintCo Part Number: KTE104
• Product Type: Top End Gasket Kit
• Bore Size: 67 mm
• Category: Gaskets

Cross-Reference OEM Part Numbers

• Head Gasket: OE# 12254-KZ3-000
• Base Gasket: OE# 12191-KS7-880
• Intake Gasket: OE# 14132-KAE-000
• Exhaust Pipe Gasket: OE# 18291-KS7-880
• Side Power Valve Gasket: OE# 12108-KS7-000
• Upper Left Power Valve Cover Gasket: OE# 12113-KS7-000
• Upper Right Power Valve Cover Gasket: OE# 12114-KS7-000

Vehicle Fitments

• 1989 Honda CR250
• 1990 Honda CR250
• 1991 Honda CR250
