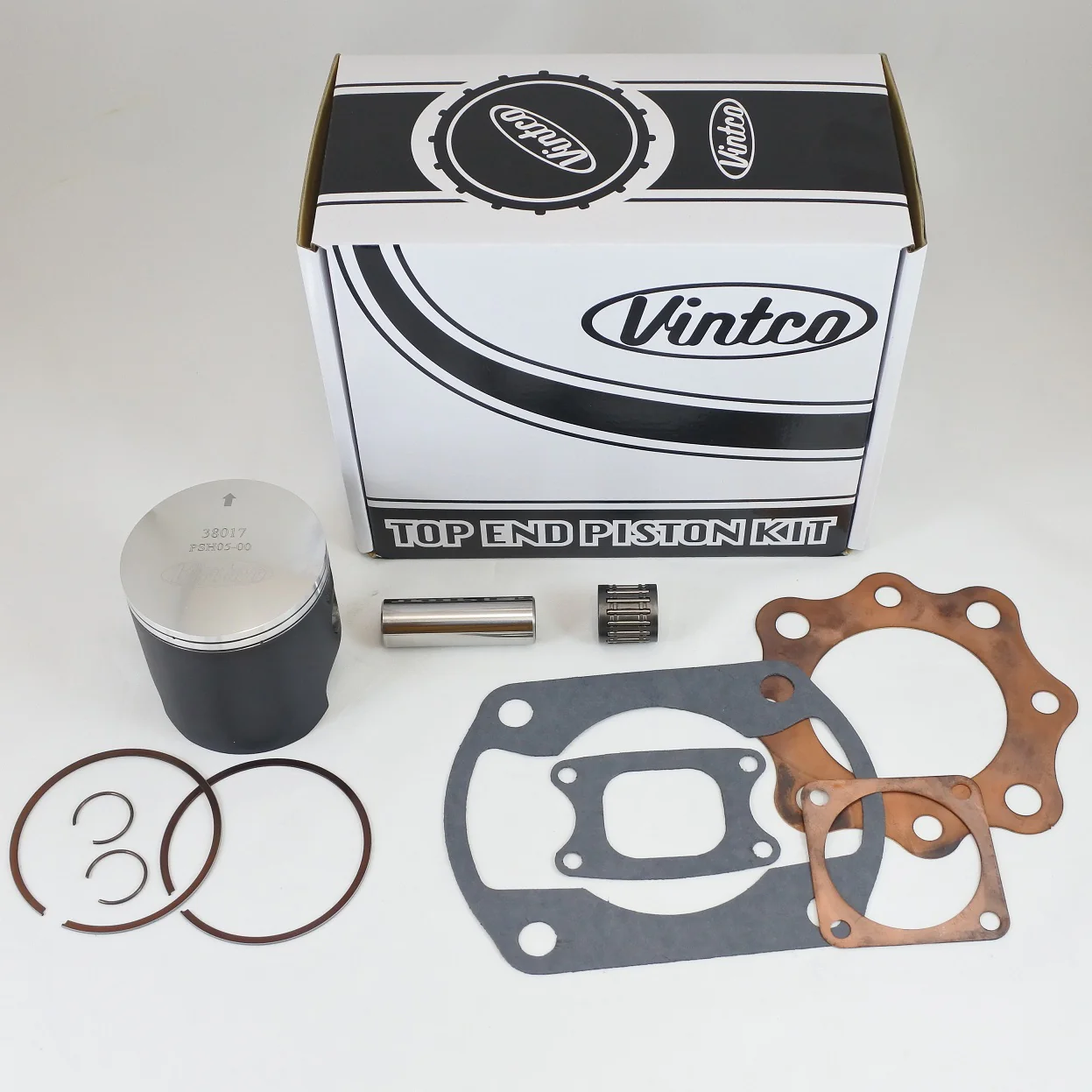

VintCo KTH07-00 is a complete top end piston kit for the 1975-1976 Honda CR250 with a 70.0 mm standard bore. It is supplied for top end rebuild work and includes a forged piston kit with piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket set comprising the head, base, intake and exhaust gaskets. The components are produced using modern materials and manufacturing methods for OEM-style fitment and performance, and the kit is priced at 10% less than purchasing the included parts individually.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes head gasket
• Includes base gasket
• Includes intake gasket
• Includes exhaust gasket
• Intended for 1975-1976 Honda CR250 models
• Manufactured for OEM-style fitment and performance
• Kit price includes a 10% saving compared with buying the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTH07-00
• Product type: Top end piston kit
• Bore size: 70.0 mm
• Bore type: Standard
• Piston diameter: 69.94 mm
• Piston-to-cylinder clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MoS2
• Piston manufacturing origin: Germany

Cross-Reference OEM Part Numbers

• Piston: 13101-381-000
• Head gasket: 12251-357-020
• Base gasket: 12191-381-306
• Intake gasket: 16222-381-000
• Exhaust gasket: 18359-357-000
• Wrist pin bearing: 91015-357-003

Vehicle Fitments

• 1975 Honda CR250
• 1976 Honda CR250
