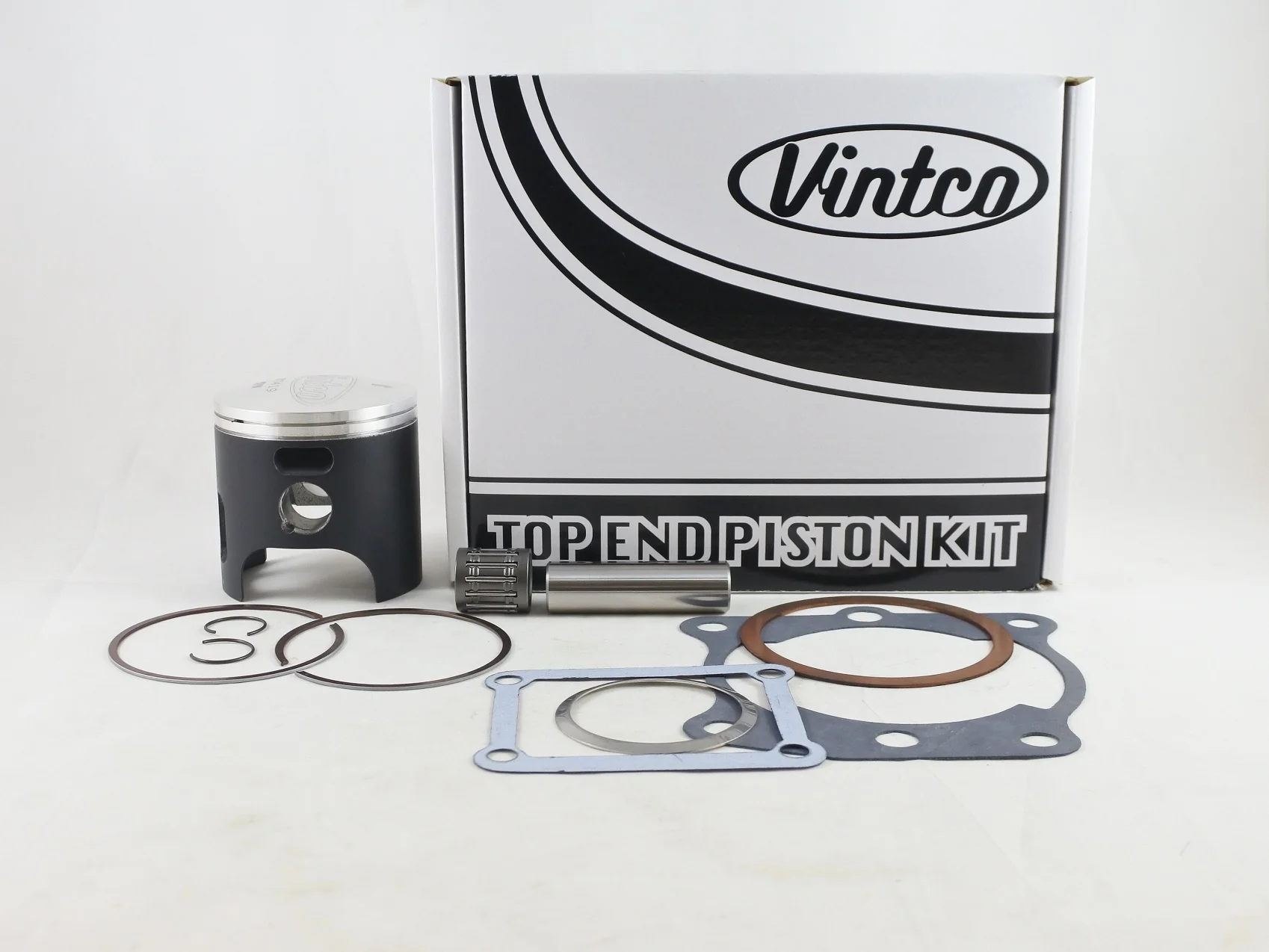

This top-end piston kit is designed for 1980–1981 Yamaha IT175 models and is supplied in a 66.5 mm, 0.5 mm oversize configuration. The kit includes a German-made forged piston with MOS2 coating for break-in, cylinder head, cylinder base, intake and exhaust pipe gaskets, and a wrist pin bearing. Kit price includes a 10% discount compared with the individual items.

Features

• Complete top-end piston kit for Yamaha IT175 models
• Suitable for top-end service work
• Forged piston
• MOS2 coating for break-in
• Made in Germany
• Includes cylinder head gasket
• Includes cylinder base gasket
• Includes intake gasket
• Includes exhaust pipe gasket
• Includes wrist pin bearing

Specifications

• VintCo Part Number: KTY28-0.5
• Piston size: 66.5 mm
• Oversize: 0.5 mm over
• Piston measurement: 66.44 mm
• Clearance: 0.06 mm

Cross-Reference OEM Part Numbers

• Cylinder head gasket: 3R6-11181-00-00
• Cylinder base gasket: 3R3-11351-01-00
• Intake gasket: 3R3-13621-01-00
• Exhaust pipe gasket: 3R6-14613-01-00

Vehicle Fitments

• 1980 Yamaha IT175
• 1981 Yamaha IT175
